Vertiv - EDGE-750IMT - Vertiv Onduleur ligne interactive VERTIV EDGE - 750 VA/675 W - 1U Tour - 230 V AC Entrée - Achat Onduleur

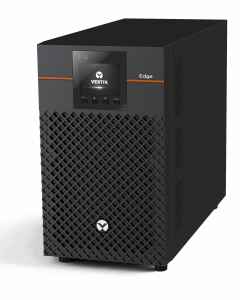

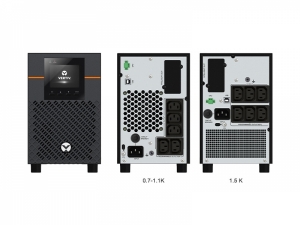

Vertiv Onduleur ligne interactive VERTIV EDGE - 750 VA/675 W - 1U Tour - 230 V AC Entrée
Marque : VERTIV | EAN : 0767041031379 | Référence : EDGE-750IMT

En vente

472,18 € T.T.C.

DESCRIPTION
FICHE TECHNIQUE

Vertiv™ EDGE est une gamme de systèmes ASC fiable, efficace, facile à gérer et flexible pour applications essentielles réparties et pour centre de données de périphérie de réseau. Système Vertiv™ EDGE-750IMT fourni en montage tour avec protection de l’alimentation de secours de 750 VA/630 W. Facteur de puissance élevé de 0,9, prises contrôlables et écran ACL intuitif; Vertiv EDGE, choix simple et économique pour applications TI réparties et de périphérie de réseau.

BASIC
Application/Usage	Business
Application/Usage	Critical System
Application/Usage	Data Center
Application/Usage	Data Storage
Application/Usage	Server
Application/Usage	Electronic
Application/Usage	IOT Device
Application/Usage	IT Equipment
Application/Usage	Network
Application/Usage	Edge Computing
Battery Chemistry	Lead Acid
Product Type	Line-interactive UPS
Input Voltage	230 V AC
Form Factor	Tower
Waveform Type	Sine Wave
Rack Height	1U
Brand Name	VERTIV
Plug/Connector Type	IEC 60320 C14
Input Voltage Range	166 V AC 278 V AC
Phase	Single Phase
Receptacle Type	IEC 60320 C13
Product Family	EDGE
Backup/Run Time (Half Load)	17 Minute
Backup/Run Time (Full Load)	5.90 Minute
Load Capacity (VA)	750 VA
Load Capacity (Watt)	675 W
AVR	Yes
BATTERY INFORMATION
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Number of Batteries	2
Backup/Run Time (Half Load)	17 Minute
Backup/Run Time (Full Load)	5.90 Minute
Battery Characteristics	Valve-regulated, Non-spillable
DC System Voltage	24 V DC
Typical Battery Recharge Time	3 Hour
Number of External Battery Cabinets	6
ENVIRONMENTAL CONDITIONS
Maximum Operating Temperature	40°C
Maximum Operating Elevation	3 km
Storage Temperature	-25°C - 55°C
INTERFACES/PORTS
EPO Port	Yes
USB (HID Compliant) Port	Yes
MANAGEMENT
Network Management	SNMP/Webcard
MISCELLANEOUS
Package Contents	EDGE-750IMT 750VA Tower UPS USB Cable Printed Quick Installation And Guide Safety Instructions Adjustable 4-post Rack Mounting Kit Support Base For Tower Configuration Input And Output Power Cables
Software Included	Power Assist
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Certification	REACH
PHYSICAL CHARACTERISTICS
Weight (Approximate)	11 kg
Form Factor	Tower
Rack Height	1U
Height	220 mm
Width	145 mm
Depth	370 mm
POWER DESCRIPTION
Input Voltage	230 V AC
Output Voltage	200 V AC
Output Voltage	208 V AC
Output Voltage	220 V AC
Output Voltage	230 V AC
Output Voltage	240 V AC
Load Capacity	750 VA/675 W
Surge Energy Rating	624 J
Waveform Type	Sine Wave
Input Voltage Range	166 V AC 278 V AC
Input Frequency	65 Hz
Input Frequency	65 Hz
TECHNICAL INFORMATION
Application/Usage	Server
Application/Usage	Business
Application/Usage	Critical System
Application/Usage	Data Center
Application/Usage	Data Storage
Application/Usage	Edge Computing
Application/Usage	Electronic
Application/Usage	IOT Device
Application/Usage	IT Equipment
Application/Usage	Network
Plug/Connector Type	IEC 60320 C14
Phase	Single Phase
Receptacle Type	IEC 60320 C13
AVR	Yes
Transfer Time	6 ms
Receptacle Detail	5 x IEC 60320 C13
WARRANTY
Limited Warranty	2 Year
